Specification | A33.1302 Series of Digital LCD Laboratory Microscope |
Head | 8″Color LCD Display, Seidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50-75mm |
Eyepiece | WF10x/23mm, Dia.30mm, High Eyepoint, Dioper Ajustment -/+5 |
Objective | A33.1302-T1 With Achromatic Objectives 4x,10x, 40x & 100x (oil) |
A33.1302-T2 With Plan Achromatic Objectives 4x,10x, 40x & 100x (oil) | |
A33.1302-T3 With Infinity Plan Achromatic Objectives 4x,10x, 40x & 100x (oil) | |
Nosepiece | Backward Quadruple Nosepiece |
Focus System | CoaxialCoarse & FineFocusing,CoarseFocusingRange 25mm, FineFocusingScale 0.002mm, WithTensionAdjustment,WithUpperSafetyStop |
Stage | Double Layer Mechanical Stage 220x148mm/76x50mm, Precision 0.1mm, Double Slide Clamp, Rackless Steel Wire Transmission Moving |
Condenser | Abbe N.A.1.25 With Slot For DF, PH & Pol |
Light Source | 3W LED With Kohler Illumination System, Brightness Adjustable |

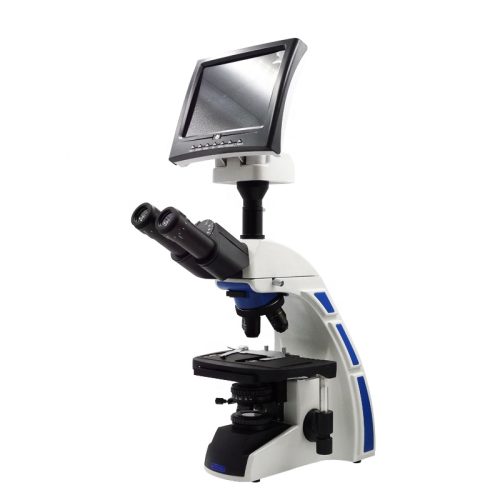

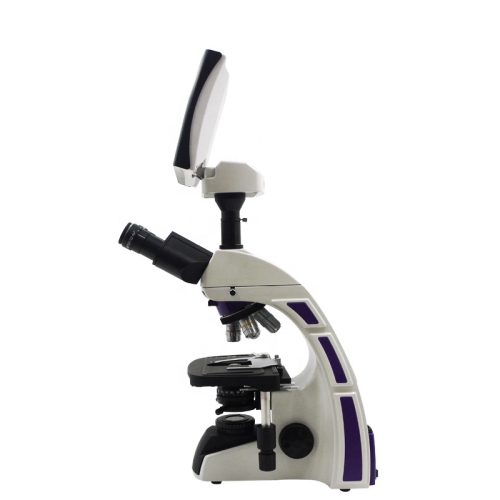

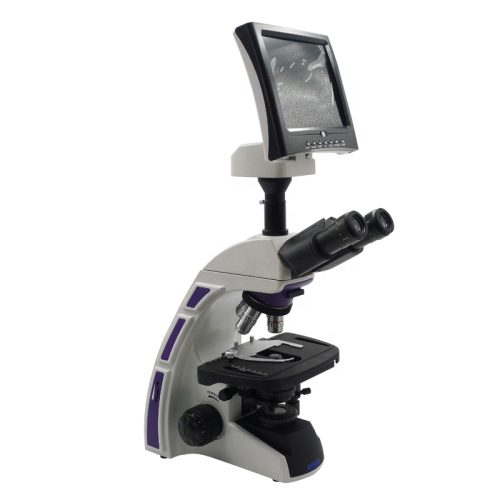

OPTO-EDU A33.1302-T1 8″ China Digital Biological Microscope With LCD
A33.1302 is based on the A12.1305 biological microscope, which configuration extra 8.0″LCD pad camera and CCD camera. It is a type of professional biological microscope and very convenient to observe. You don’t need to connect the computer anymore because LCD screen will display directly. There are 3 types of objective to choose, all models are equipped with an integrated X-Y mechanical stage and are supplied with an Abbe N.A. 1.25 condenser. 3W LED Kohler illumination with removable light house is very bright.
